Description

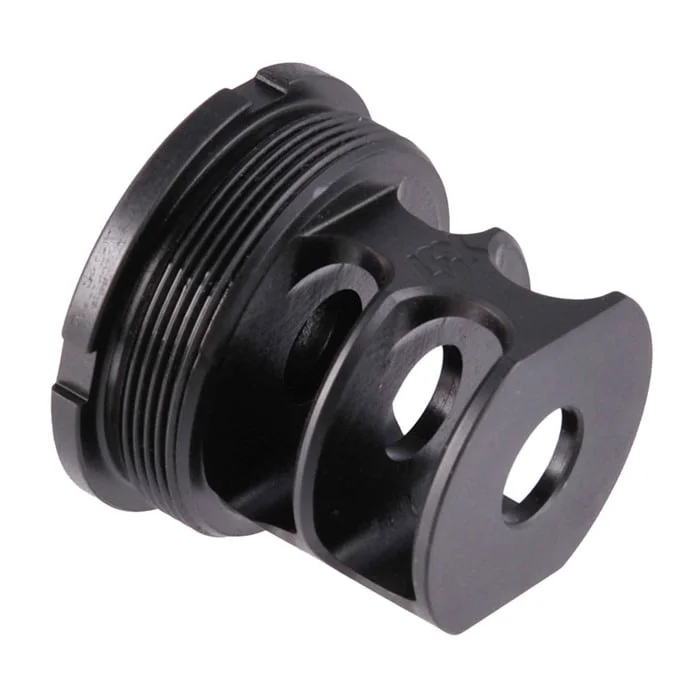

The X20 Series Muzzle Brakes combine JMAC’s effective RRD muzzle brake design and a direct thread mount for several popular suppressors as well as their BDS-20 Blast Shield! This allows you to leave the muzzle device installed and simply thread the suppressor over! Reduces weight, length, and cost compared to QD systems. Direct thread is also the preferred mounting method for accuracy!
Product Specs:
- 14-1LH Barrel Threads
- 1.48″ long (adds approx 1″)
- 10MM Diameter Bore
- 1.203-28 External Threads
- 17-4ph Stainless
- Black Nitride
- Timing required for proper function.
- Compatible with BDS-20 Blast Diversion Shield and DeadAir Wolfman Facemount Device
- Not intended or recommended for barrels shorter than 10.5â€
*When testing these devices, JMAC found that high rates of fire such as full auto or “mag dumps†could cause damage to the device due to the excess heat, pressure, and gasses from unburnt powder on shorter barrels.
This device is designed to be tightened against the face of the barrel. You must use our face shims (optional) or your barrel MUST be faced to properly time this muzzle device. If you’re not familiar with Facemount devices, click HERE to learn more!
