Description

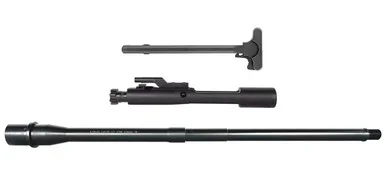

16″Pencil AR-15 5.56 .223 Carbine Barrel with Complete Nitride Bolt Carrier Group and 7075 Charging Handle
Barrel Info:
This 5.56 chambered 16″ Pencil Profile Barrel is machined from 4150 Chrome Moly Vanadium steel with a QPQ Corrosion Resistant Finish and QPQ coated M4 feed ramp extension.
Quench Polish Quench (QPQ) is a specialized type of nitrocarburizing case hardening that increases corrosion resistance. It is sometimes known by the brand name of Tufftride, Tenifer Black Nitride or Melonite. QPQ is a huge improvement over Chrome Lined barrels. Unlike chrome lining, where the chrome is built up on the surface, QPQ converts the surface without the risk of dimensional build up. The technique is used when two or more of the following properties are required in a work piece:
| Barrel | Specifications |
|---|---|
| Caliber | 5.56 |
| Length | 16″ |
| Material | 4150 Chrome Moly Vanadium |
| Profile | Pencil |
| Finish | QPQ Corrosion Resistant |
| Gas System Length | Carbine |
| Gas Block Journal | .625″ |
| Dimpled? | No |
| Twist Rate | 1:7 |
| Muzzle Thread | 1/2×28 TPI |
| Weight | 23.2oz |
| Barrel Extension | M4 Feed Ramps |
| Target Crown | 11 Degree |
Complete BCGInfo:
This Complete BCG comes in a Melonite finish which produces an extremely slick surface. The carrier is made from 8620 steel. The bolt is made from 9310 steel and is MPI / ISO QC inspected. The 223 Bolt and Bolt Carrier Assembly is compatible with 5.56 and 300 Blackout.
- Enhanced 9310 Steel (Bolt)
- 8620 Tool Steel (Carrier)
- Mil-Spec Extractor Spring, black extractor insert, Viton O-Ring
- Tool Steel Extractor
- Shrouded Firing Pin
- Mil-Spec Gas Key (4130 Steel) attached with Grade 8 hardware and Properly staked
- Caliber: .223 / 5.56 / 300 Blackout
- Bolt is shot Peened
Charging HandleInfo:
- Tried and True Standard Charging Handle
- Forged7075 Aluminumconstruction
- Mil-Spec Type-III Hardcoat Anodized finish
- Caliber – .223 / 5.56 / 300 Blackout
- Made in the USA
